The full package for large rooms

Make remote connection seamless in your large classrooms and training rooms with an easy pro AV alternative. With Nureva XT large, you get our Dual HDL300 audio system, which picks up every voice, everywhere – no need for extra mics. Nureva XT also includes a 4K camera built for learning plus value-added services, a powered USB hub and more.

Audio made easy

  • Powerful features
  • Simple setup

Nureva audio connect module

Connect module

No DSP required

All the onboard processing power you need for high performing audio is built right into Nureva XT. There’s no need to purchase and set up a traditional DSP, simplifying your installation and maintenance.

Nureva audio connect module no DSP required

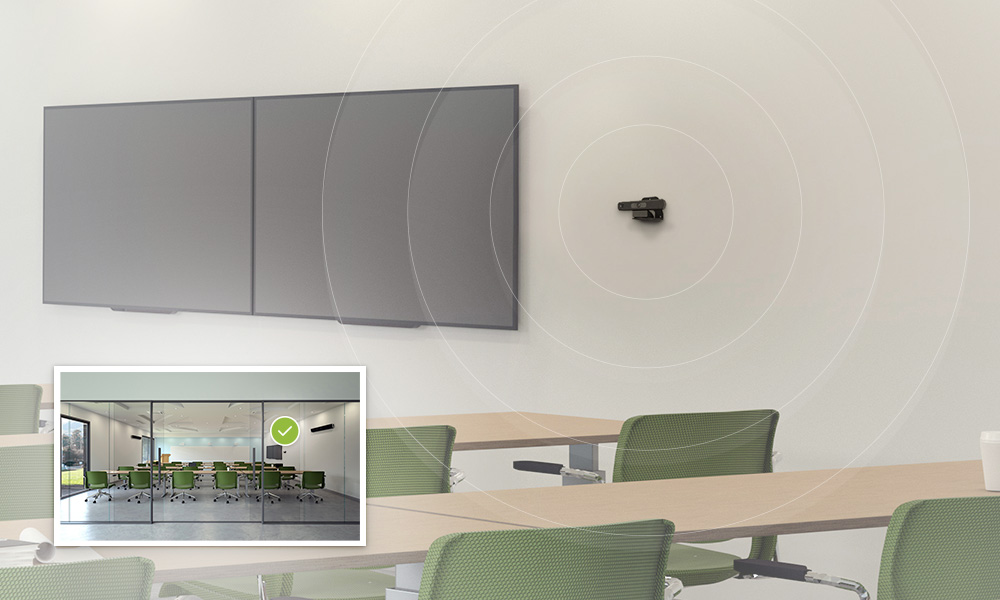

Video built for learning

CV30 ePTZ camera features

  • 84-degree field of view to cover the entire front of the room
  • 4K sensor so remote participants see everything
  • Three camera presets plus manual pan, tilt and 8x zoom
  • Auto-tracking powered by an advanced algorithm

Other components

  • Powered USB hub to connect all devices
  • 33' (10 m) extended USB cable for flexible camera placement
  • Remote to control both video and audio

Nureva CV30 camera



Microphone Mist technology

Powering Nureva XT is patented Microphone Mist™ technology, the breakthrough that audio conferencing has been waiting for. It fills rooms with thousands of virtual microphones so people’s voices are picked up everywhere – making Nureva the easiest and most cost-effective way to get true full-room audio coverage in all your spaces.

The virtual mic difference

Resources

Full-room microphone pickup

With 16,384 virtual microphones filling your space, there’s always one nearby. People can speak and act naturally in training sessions and classes and be confident they will be heard by those who are remote.

Intelligent Sound Targeting

HVAC and other unwanted sounds can seriously affect your audio. So instead of trying to suppress them after the fact, we use adaptive learning algorithms to preemptively ignore them.

Position-based gain control

We apply gain separately to each sound in a space based on its position. This lets us make specific optimizations that create a natural listening experience for remote participants – as if they were in the room.

Continuous autocalibration

With our technology, you never need to make manual adjustments when you reconfigure your space. The system is automatically and continuously adapting to changes in your room’s acoustic profile.

Simultaneous processing

Microphone Mist technology listens to, and processes, all virtual microphones simultaneously. Conversations sound natural even when more than one person is speaking at the same time.

Microphone Mist technology

Explore the technology

Additional features

Resources

Nureva audio Voice Amplification Mode



Voice Amplification Mode

Amplify a presenter or instructor’s voice in the room without compromising the listening experience of remote attendees.

Learn more
Nureva audio Active Zone Control



Active Zone Control

Designate a zone in the room where microphone pickup is maintained while pickup in the rest of the space is reduced.

Learn more

Book a demo

Meet Nureva XT large - join us for a 15-minute live, online demo.      Pick your time



Nureva Pro

Peace of mind – included

Nureva XT includes a 3-year or 5-year subscription to Nureva Pro to help keep your learning spaces running smoothly. Here’s what you get:

  • Extended warranty
  • Expanded support
  • Advance hardware replacement
  • Enhanced Nureva Console features
Nureva Pro extended warranty

Get the assurance that comes with a 3- or 5-year warranty. This extends the 2-year warranty that comes standard with our audio systems and cameras.

Nureva Pro expanded support

Get access to knowledgeable experts when you need them. With Nureva Pro, support is available 20 hours a day (5 days a week) to quickly resolve issues.

Nureva Pro advanced hardware replacement

Ensure your space gets back up and running quickly if a unit ever needs to be replaced. If we can’t fix the problem, we’ll ship you a replacement unit the next business day.

Nureva Pro enhanced Nureva Console features

Unlock extra features in our cloud-based management software, including email alerts, acoustic insights, historical usage data and a room data API.

Nureva XT large installation

Up and running in less than an hour

Discover the secret to easier hybrid teaching and learning:

  • No DSP required – all processing power is built in
  • No complicated wiring or invasive ceiling installs
  • No restrictions on camera placement
  • No lengthy configuration processes
  • No compatibility problems with your existing technology products

Plug it in and it just works. It’s that simple.

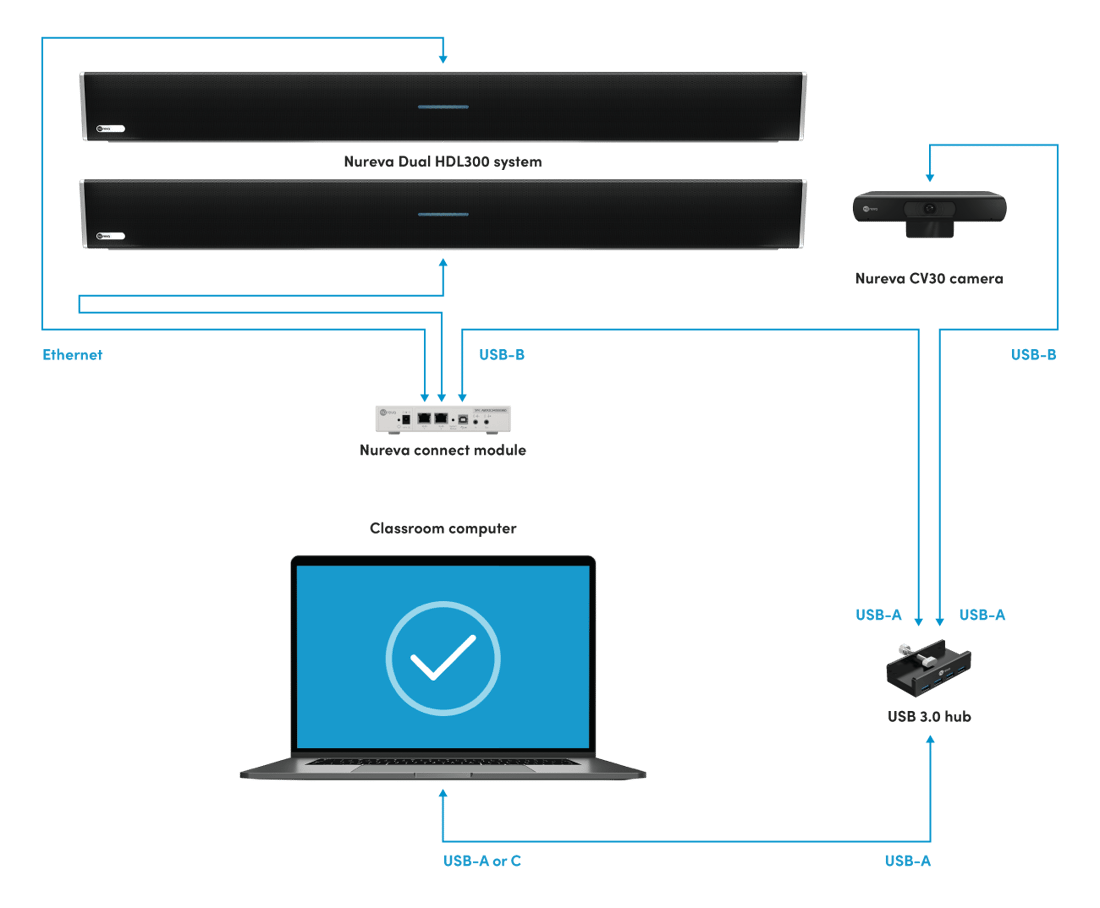

Configuration diagram

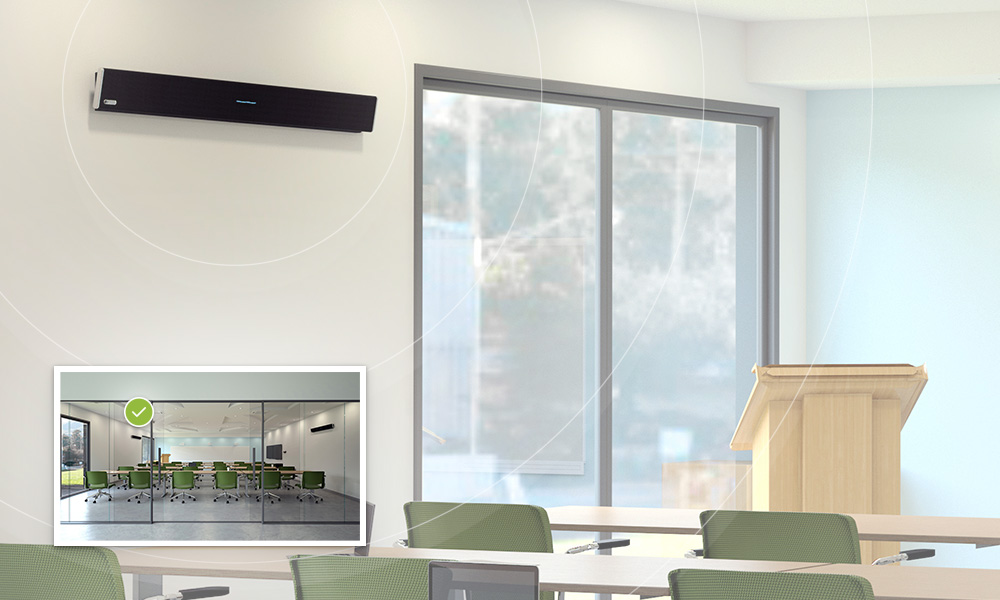

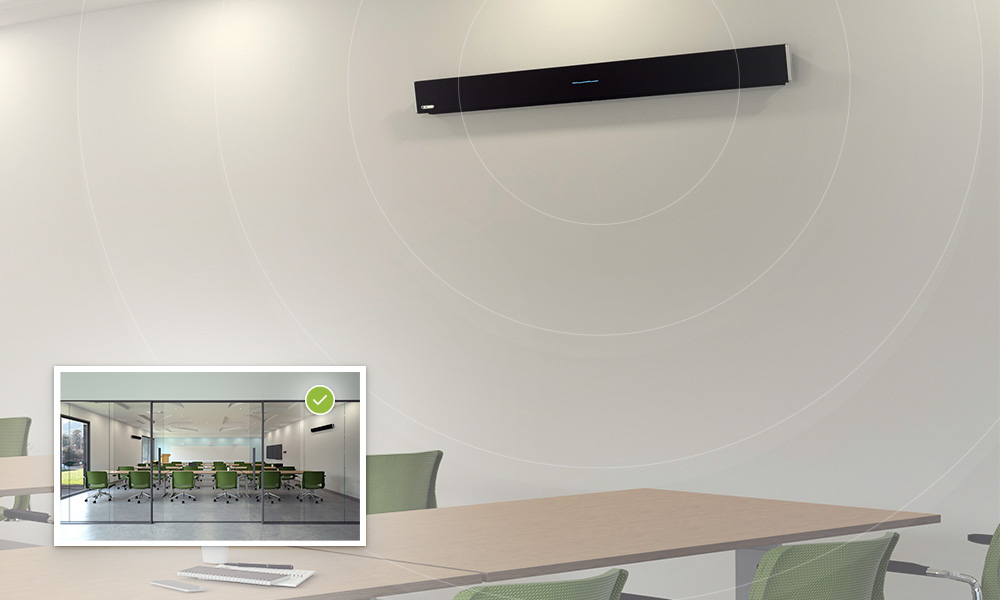

Nureva XT large build for flexibility
Nureva XT large build for flexibility
Nureva XT large build for flexibility
Nureva XT large build for flexibility

Built for flexibility

With innovative full-room audio, a 4K camera and value-added services, Nureva XT gives you what you need to equip your large classrooms and training rooms.

Plays nicely with others

Use Nureva XT with all leading UC&C platforms, including including Microsoft® Teams and Zoom. As a standard USB device, it also works well with most everything else you have in your spaces.

Get the details
Nureva XT large UC&C platforms

Software and services

How they work together

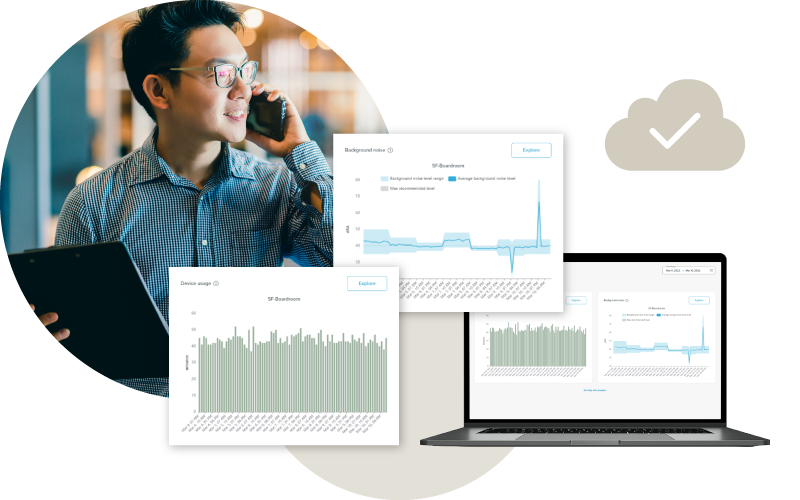

Nureva Console

Nureva Console

Remotely install firmware updates, check device status, adjust audio settings, dive into analytics data and more – all from a secure, cloud-based platform.

 Included with Nureva XT

Nureva Developer Toolkit

Nureva Developer Toolkit

Get versatile APIs that make it easy to integrate your Nureva devices with other products, automate tasks and enable third-party camera switching and steering.

 Included with Nureva XT

Nureva Pro

Nureva Pro

Choose either a 3- or 5-year Nureva Pro subscription, which includes an extended warranty, expanded support hours, advance hardware replacement and enhanced capabilities in Nureva Console (included with Nureva XT).

Compare your options

Nureva XT standard
Nureva XT large
Nureva XT standard for mid-size learning spaces
Nureva XT large for large learning and training spaces
Max room size
25' x 25' | 7.6 x 7.6 m
30' x 50' | 9.1 x 15.2 m
Installation time
45 minutes
75 minutes
USB plug and play
Yes
Yes
Mounting
Wall
Wall
Full-room mic pickup
Yes
Yes
Virtual microphones
8,192
16,384
Position-based gain control
Yes
Yes
Integrated speakers
Two 20-watt
Four 20-watt
Voice amplification
Yes
Yes
CV30 camera
Yes
Yes
Powered USB hub
Yes
Yes
Nureva Pro subscription
Included (3- or 5-year options)
Included (3- or 5-year options)
Learn more

Need a more powerful option for your large spaces? Check out the HDL410.

Resources


Nureva XT brochure

Discover the features, benefits and specifications of Nureva XT.

Nureva Console data sheet

Learn about the features and benefits of our cloud-based management platform.

Nureva Console security brief

Find security and privacy details related to our cloud-based management platform.

Nureva Pro data sheet

Learn about the features and benefits of our value-added subscription service.

Introducing Nureva XT video

Discover why we created Nureva XT and how it supports classrooms.

Support


Get resources for the HDL300 system and CV30 camera (which make up Nureva XT). You can also connect with our support team for more assistance.

View all support



CV30 camera

Getting started

Installation

Resources


Nureva Console

Troubleshooting

Downloads

Release notes

FAQs




Nureva XT is currently available to order in North America and Europe. Find a distributor.

No – all you need is a computer running a UC&C platform. No extra components or DSP required. To get updates and manage the system, make sure to install Nureva Console on your in-room computer.

Yes. Although the Dual HDL300 comes with integrated 20-watt speakers, you can also connect it to your own speakers if you prefer.

One of the most popular features of Nureva XT (and all Nureva systems) is the fact that we keep adding features and making improvements. To get regular firmware updates, make sure to register your system in Nureva Console.

Nureva’s patented Microphone Mist technology fills a room with thousands of virtual microphones (a Dual HDL300 system, which is part of Nureva XT, deploys up to 16,384 of them). Each virtual microphone is a point in space where two or more physical microphones (there are 24 in a Dual HDL300) work together intelligently to focus audio pickup. Microphone Mist technology listens to each virtual mic simultaneously and optimizes each one for natural conversations.

When two people talk at the same time, the Dual HDL300 in Nureva XT focuses on the stronger signal (the louder voice), while the other voice drops into the background. The effect is as if you were standing in the room close to the louder talker, but are also aware that someone else is speaking at the same time.

The Nureva CV30 camera has been designed specifically with classrooms and training rooms in mind. For example, the field of view has been narrowed to focus on the instructor at the front of the room. It also comes with a unique 33' (10 m) USB cable that enables the camera to be placed exactly where you want it to go.

Your classroom USB devices (including the Dual HDL300, CV30 camera and other edtech products such as interactive whiteboards) can be plugged into the USB hub. This means that instructors simply need to plug their laptop into the hub, using one USB cable. This connection will bring the entire system to life.

Yes, a subscription to Nureva Pro comes with Nureva XT – you can choose either the 3-year or 5-year option. With a Nureva Pro subscription, you receive extended access to technical support, advance hardware replacement, extended warranty and enhanced Nureva Console features.

You don’t need to enroll your devices to get expanded access to technical support or advance hardware replacement. You will need to enroll devices to activate your extended warranty and get access to the enhanced Nureva Console features that are only available with a Nureva Pro subscription.

When our support team determines that your device needs to be returned for service, a replacement unit will be shipped the next business day from one of our global logistics centers. Ground shipping is typically two days to your location.

  • Specifications
  • Configuration diagram

Dual HDL300



Microphone and speaker bar (each)

Continuous autocalibration
Position-based gain control (PBGC)
Acoustic echo cancellation
Built-in sound masking
Plug and play, no software or drivers required
Integrated, multicolor status LED
Single Ethernet cable to microphone and speaker bar
Primary audio source for video playback
24 (12 per microphone and speaker bar) low-noise omnidirectional MEMS microphones
20W (x4) speakers – 4" aluminum cone



Connect module

USB 2.0 interface to computer, type B x1
Auxiliary out – 3.5 mm unbalanced stereo jack x1
Auxiliary in – 3.5 mm unbalanced stereo jack x1
Connection port – RJ-45 x2
Input jack for power supply x1



DIMENSIONS



Integrated microphone and speaker bar

Width: 60.0" (152.4 cm)
Height: 5.91" (14.9 cm)
Depth: 3.5" (9.0 cm)

Weight: 18.0 lb. (8.2 kg)



Connect module

Width: 6.5" (16.5 cm)
Height: 1.41" (3.6 cm)
Depth: 4.31" (10.9 cm)

Weight: 1.5 lb. (0.7 kg)



Shipping (each microphone and speaker bar, connect module and accessories)

Width: 64.75" (164.4 cm)
Height: 10.63" (27 cm)
Depth: 9.5" (24.1 cm)

Box 1: 24.0 lb. (10.9 kg)
Box 2: 22.0 lb. (10.0 kg)

CV30 classroom camera kit



Camera

Supports 4K Ultra HD (up to 4K@30fps/25fps) plus 1080p and 720p
ePTZ with up to 8x zoom
Supports a wide dynamic range that can handle different lighting environments
84° FOV lens with autofocus
3 preset camera views and auto-tracking mode



Adjustable mounting base

Variable adjustment with 1/4-20 threaded insert
Included wall-mount bracket, powder-coated aluminum



Powered USB hub

USB 3.0 connection, power supply, video and audio
4 USB ports to support the CV30 camera and a Dual HDL300 system



DIMENSIONS



Classroom camera with wall-mount bracket

Width: 7.64" (19.4 cm)
Height: 2.48" (6.3 cm)
Depth: 3.58" (9.1 cm)

Weight: 1.10 lb. (0.5 kg)



Shipping (camera, wall-mount bracket, powered USB hub, extended USB cable and accessories)

Width: 9.76" (24.8 cm)
Height: 7.80" (19.8 cm)
Depth: 4.92" (12.5 cm)

Weight: 3.3 lb. (1.5 kg)

GENERAL



Part numbers

Large classroom, black, 3-year Nureva Pro: XT-DUAL-HDL300-B-3Y
Large classroom, white, 3-year Nureva Pro: XT-DUAL-HDL300-W-3Y
Large classroom, black, 5-year Nureva Pro: XT-DUAL-HDL300-B-5Y
Large classroom, white, 5-year Nureva Pro: XT-DUAL-HDL300-W-5Y



System requirements

Windows® 10
Mac® OS X® 10.14 and 10.15



Warranty

3- or 5-year warranty on the microphone and speaker bar, connect module and camera included with the Nureva Pro subscription
30-days warranty on accessories



WHATS INCLUDED



Dual HDL300

2 Integrated microphone and speaker bar
Connect module
Connect module mounting bracket
Country specific power cable
Power supply
2 Ethernet cable, 50' (15 m)
USB Type A-B cable, 6' (1.8 m)
Infrared remote with 2 AAA batteries
Documentation



CV30 camera kit

CV30 camera
Wall-mount bracket with thumb screw
Powered USB hub
USB Type A-B cable, 33' (10.1 m)
USB Type A-A cable, 3' 4" (1 m)
USB A-C adapter
Power supply with 3 country specific adapters
USB A-Micro B cable, 3' 4" (1 m)
Remote
Documentation

Setting up Nureva XT large

With Nureva XT, everything is built to be easy. Easy to install. Easy to manage. And easy for instructors and trainers to use. Installing Nureva XT large takes just 75 minutes and requires no specialized skills or tools. Here’s how everything works together.

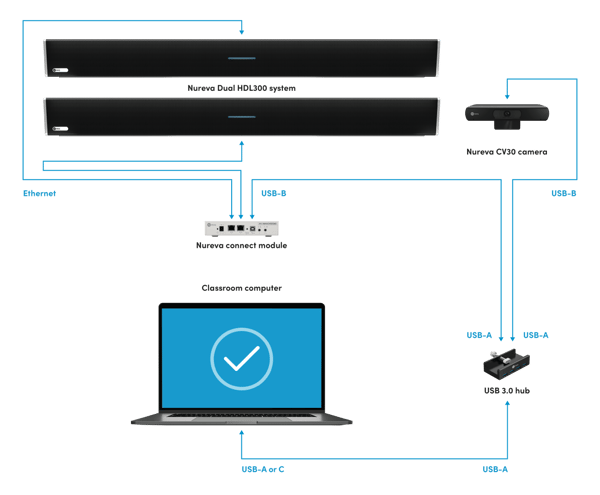

Nureva XT large configuration diagram
