HDL410

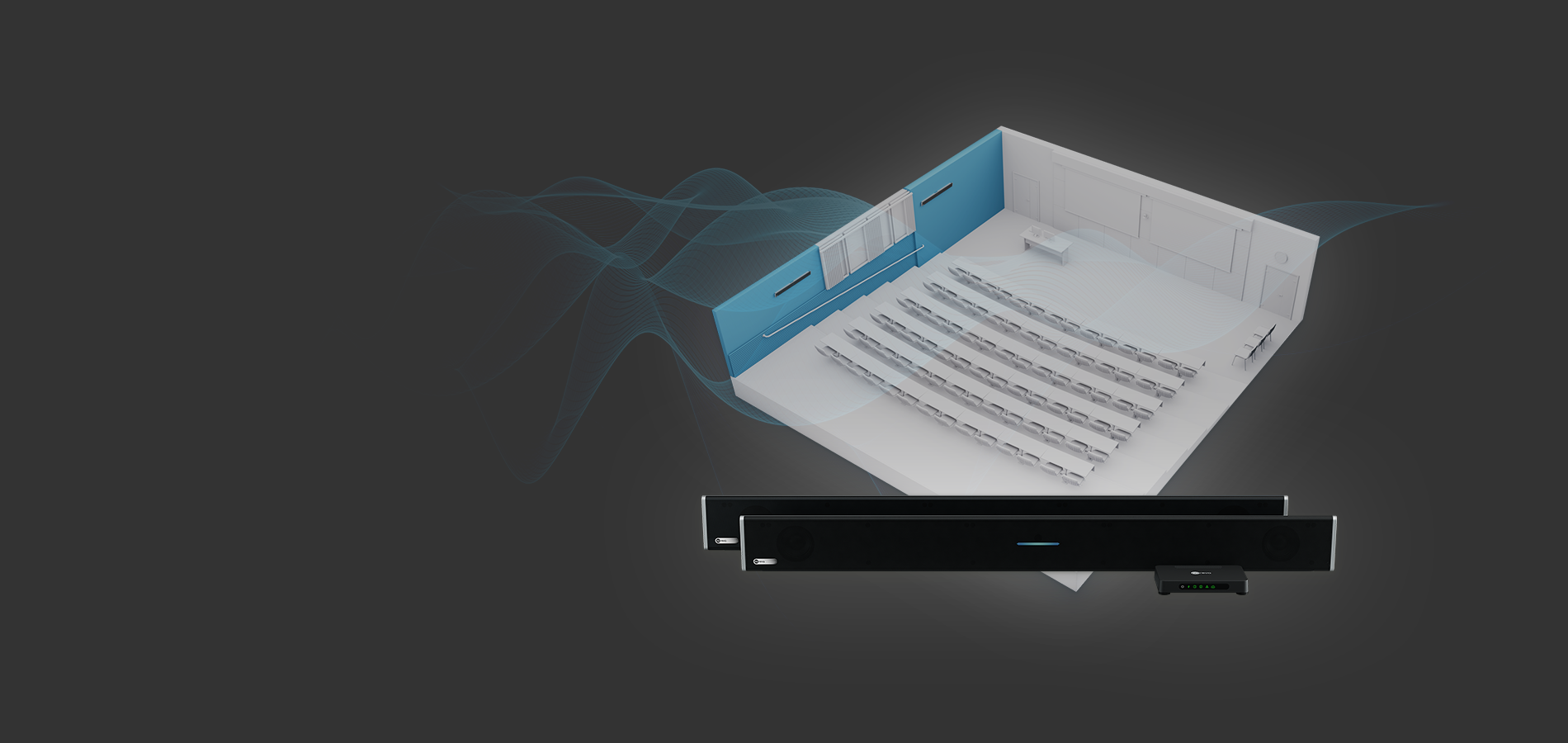

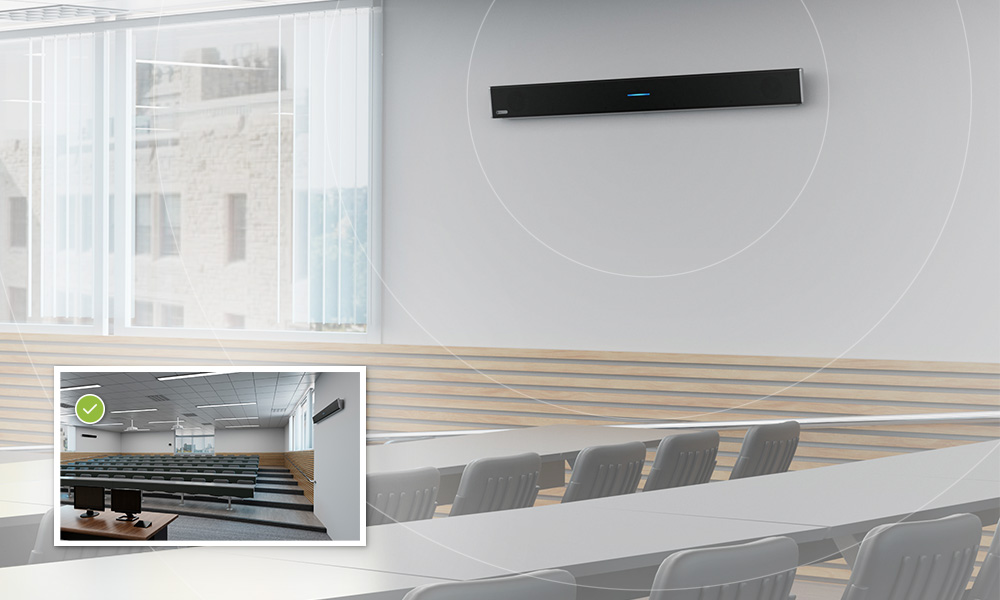

Audio conferencing for extra-large rooms up to 35' x 55'

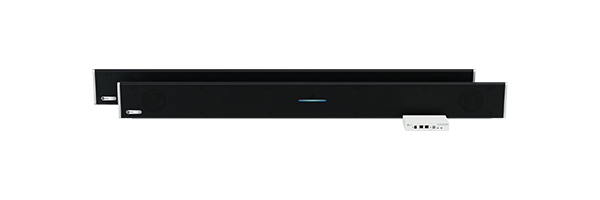

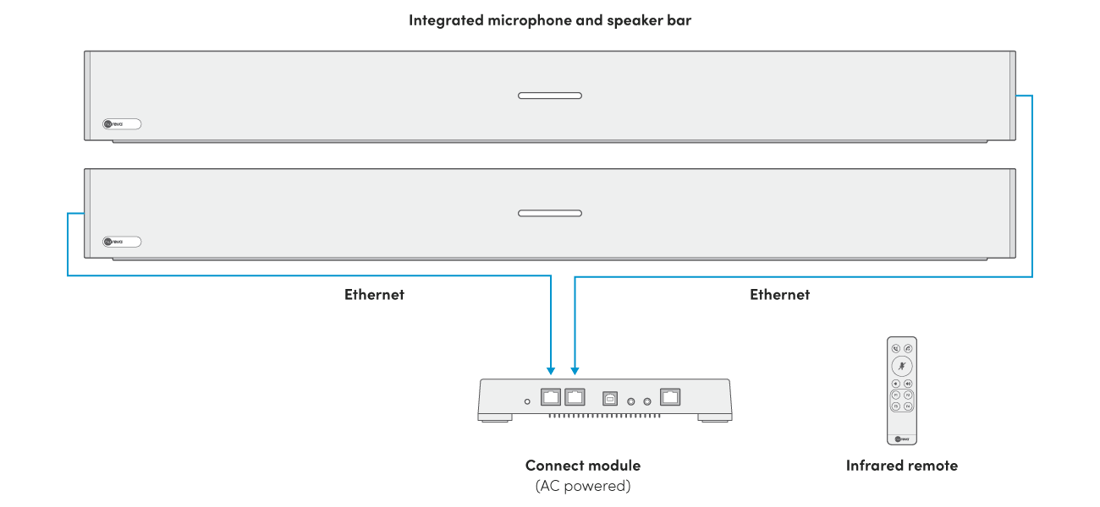

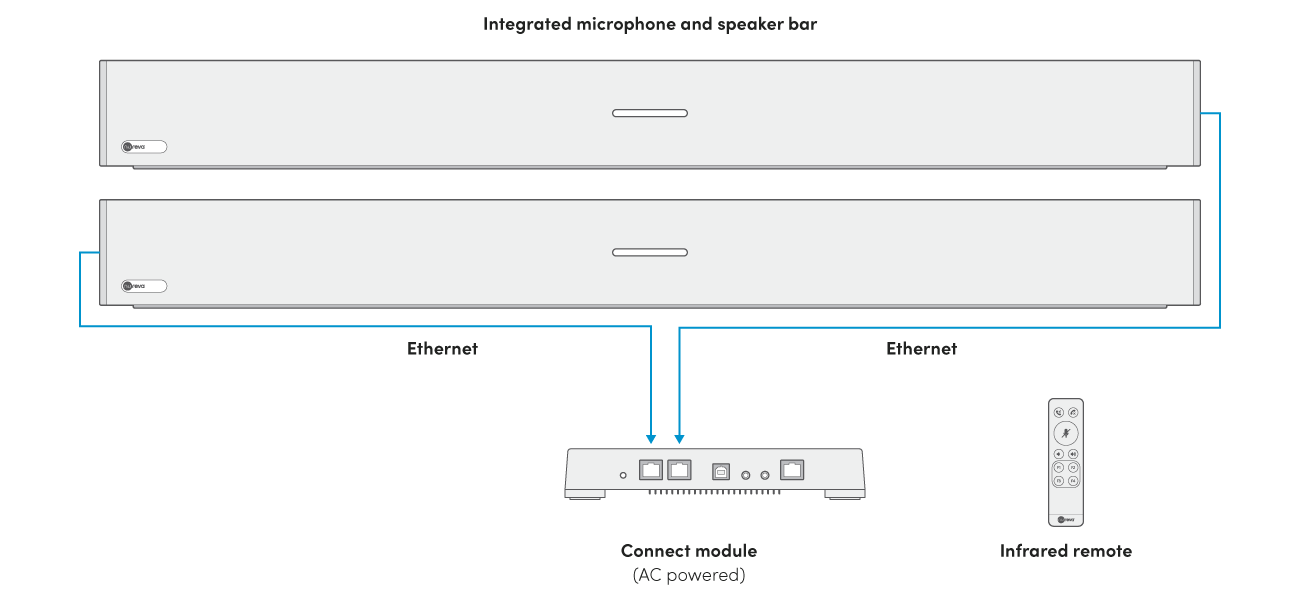

- 2 integrated microphone and speaker bars
- Connect module
- Connect module mounting bracket
- Country-specific power cable
- 2 Ethernet cables
- USB Type A-B cable
- Infrared remote
- Nureva® Console (cloud-based management and monitoring)
- Nureva App (setup, optimizing and customizing)
- Nureva Developer Toolkit (local and cloud-based APIs)
- Nureva Pro 2-year subscription (value-added services and support)
Microphones
24 low-noise omnidirectional MEMS (12 in each microphone and speaker bar)Frequency response at 94 dB SPL 100 Hz to 7 kHz
Total harmonic distortion (THD) 0.25% (typical)
Speakers
4 x 20 W 4" aluminum cone (2 in each microphone and speaker bar)Total harmonic distortion (THD) 0.25% (typical)
Connect module
USB 2.0 interface to computer or collaboration hub, type BAuxiliary out — 3.5 mm single-ended stereo jack
Auxiliary in — 3.5 mm single-ended stereo jack
2 connections to microphone and speaker bar RJ45
Console Direct RJ45 for connecting to network
Input jack for power supply
OPERATING
System requirements
Windows® 10 and 11macOS® 10 and 11 (Big Sur and Catalina)
Power
Power rating: universal switching 100–240 V AC, 50–60 Hz
Power consumption: <30 W
Environmental
Operating temperature: 0° C to 40° C(32° F to 104° F)
Storage temperature: -20° C to 70° C (-4° F to 158° F), humidity 5–90% (noncondensing)
DIMENSIONS
Integrated microphone and speaker bar (each)
Width: 60.0" (152.4 cm)Height: 5.91" (14.9 cm)
Depth: 3.5" (9.0 cm)
Weight: 18.0 lb. (8.2 kg)
Connect module
Width: 8.7" (22.2 cm)Height: 1.46" (3.7 cm)
Depth: 5.91" (15.0 cm)
Weight: 0.97 lb. (0.44 kg)
Shipping (box one)
Width: 64.75" (164.4 cm)Height: 10.63" (27.0 cm)
Depth: 9.5" (24.1 cm)
Weight: 28.0 lb. (12.7 kg)
Shipping (box two)
Width: 64.75" (164.4 cm)Height: 10.63" (27.0 cm)
Depth: 9.5" (24.1 cm)
Weight: 22.0 lb. (10.0 kg)
Warranty
Integrated microphone and speaker bars and connect module — standard 2-year limited hardwareAccessories and cables — 30 days
Extended warranties are available through Nureva Pro subscriptions
Part numbers
Black: HDL410-B
White: HDL410-W
Nureva Pro extension (1 year): NP-1Y
Nureva Pro extension (2 years): NP-2Y
Nureva Pro extension (3 years): NP-3Y
Certified for Microsoft® Teams and Zoom.
Plug and play compatibility with all leading UC&C platforms, including Google Meet™, GoTo Meeting and Cisco Webex®.
Integrates seamlessly with a wide variety of cameras, displays, speakers, lecture capture systems and other room peripherals, including solutions from Logitech, Sony and MAXHUB.
Find our resources, downloads and software, or connect with our support team for more assistance.
Pro AV performance made simple

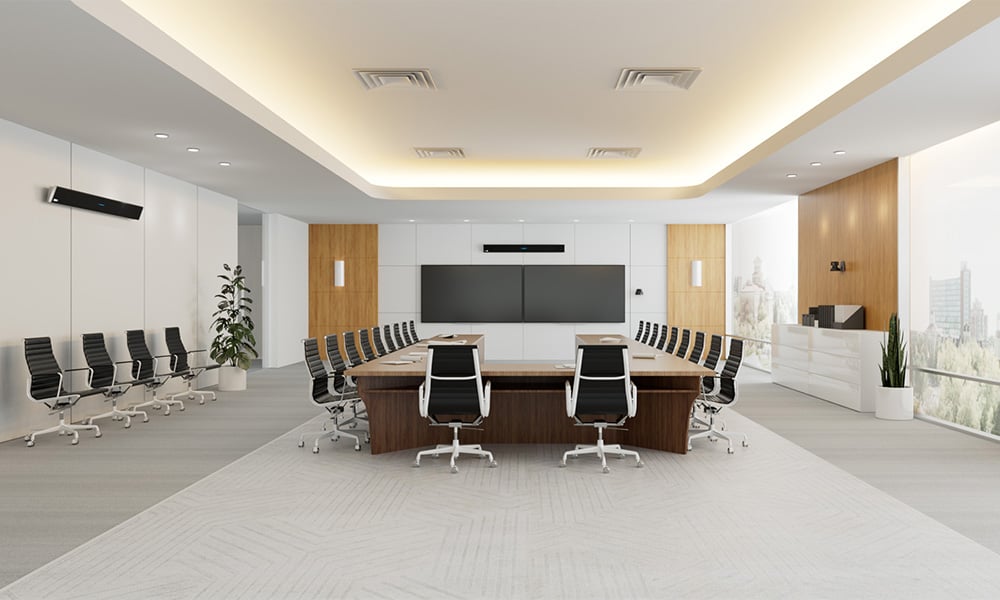

Getting advanced audio conferencing in extra-large spaces doesn’t need to be complicated and costly. The HDL410 offers you everything you need to get true full-room mic pickup in meeting rooms and classrooms up to 35' x 55' (10.7 x 16.8 m) while saving IT time and budget.
Key features
Full solution
Avoid escalating costs with a comprehensive solution that gives you everything required for great audio conferencing. It’s all included. There’s no need to purchase software, separate DSPs or other components.

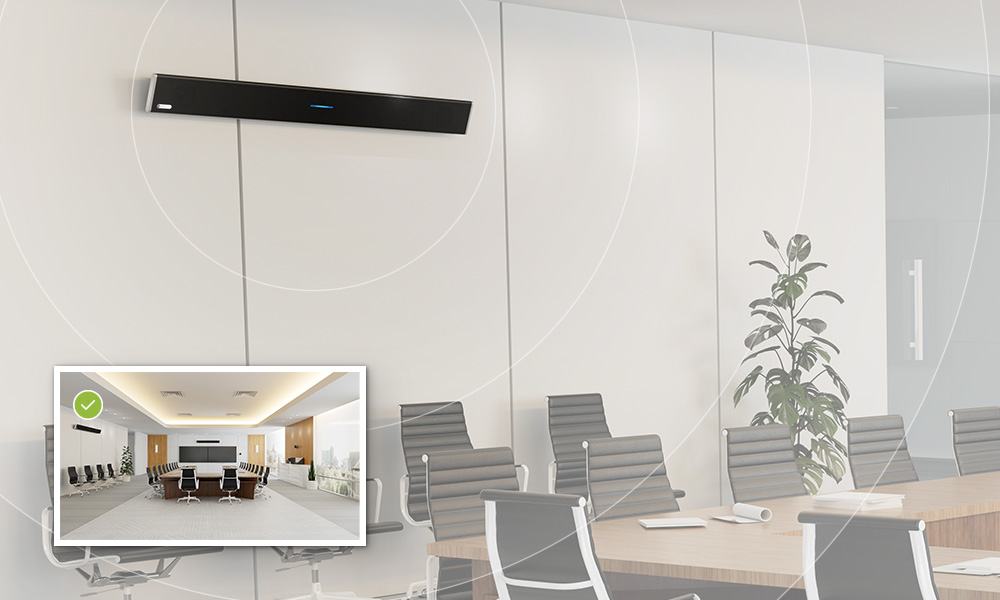

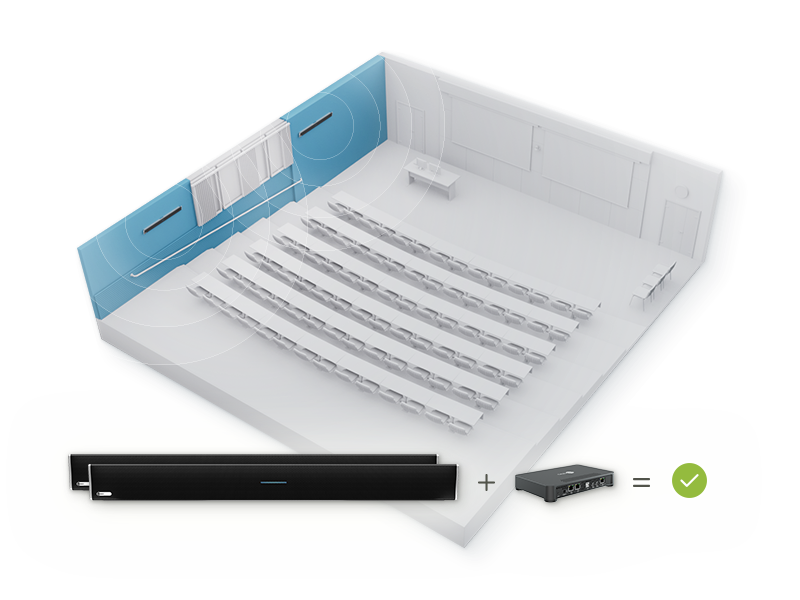

Easy installation
Install the HDL410 on a wall in as little as 60 minutes — no specialized skills or tools required. You won’t need to take a room offline or deal with any unwelcome surprises in your ceilings.
Speaker options
Turn on dynamic boost for stronger speaker output in noisier spaces. This feature tunes EQ to optimize the in-room listening experience, improving intelligibility of voices and recorded media. Or pair the HDL410 with speakers of your choice.
Management tools

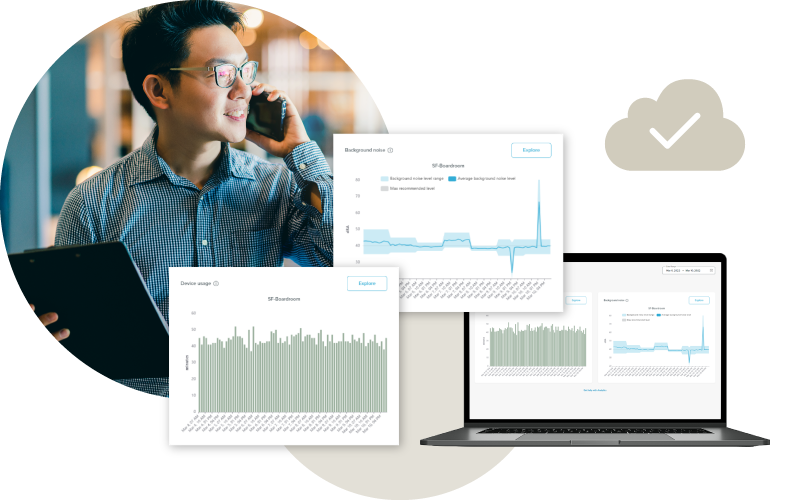

Use our software and services to make everything easier — with fleet management and monitoring tools, a handy setup app, versatile APIs and a subscription service. And everything comes at no extra charge.
Additional features
Plug and play
The HDL410 is quick and easy to set up. And as a USB plug and play device, it works easily with the other tech you have in your spaces.

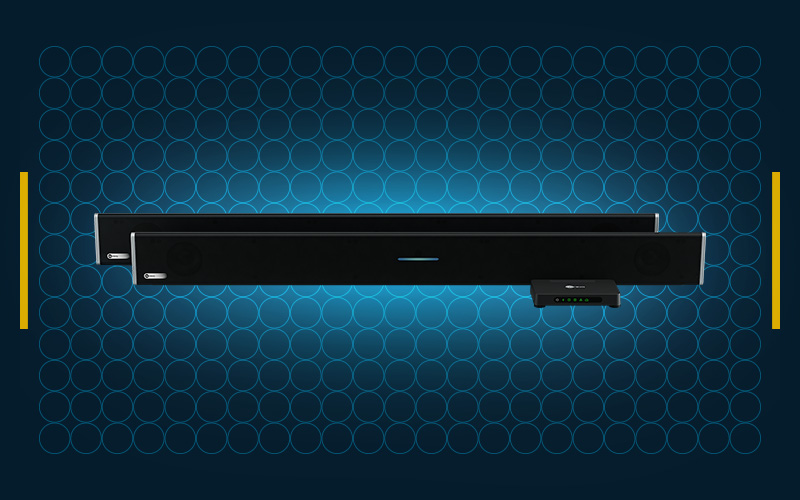

Unified coverage map
The mics from the HDL410’s two bars are processed together instead of separately, resulting in clearer mic pickup. Patent pending.

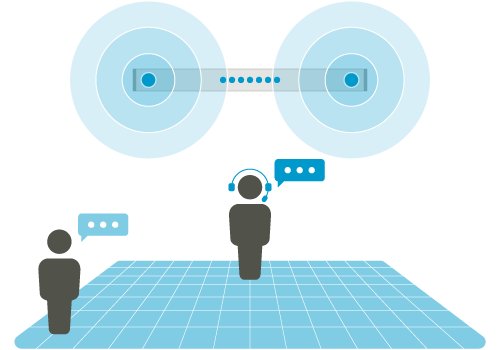

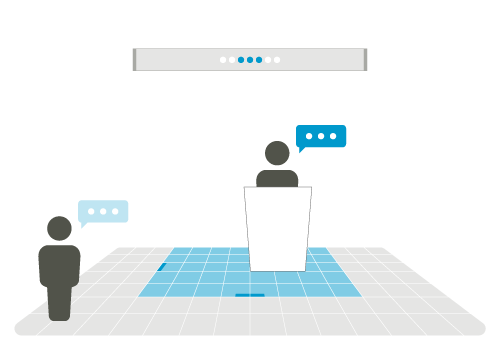

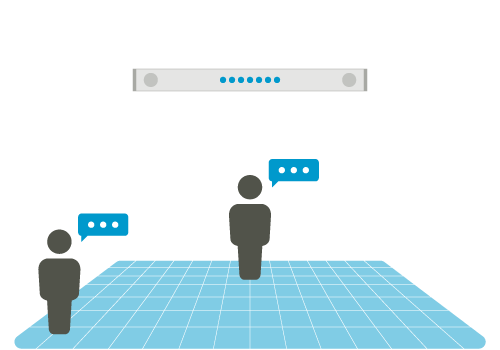

Voice Amplification Mode
It’s easy to amplify a presenter’s voice in the room without diminishing full-room mic pickup for remote participants. Audience mute is included.
Room device options
The HDL410 can be connected to a PC, collaboration hub, conferencing appliance, videoconferencing codec or laptop.

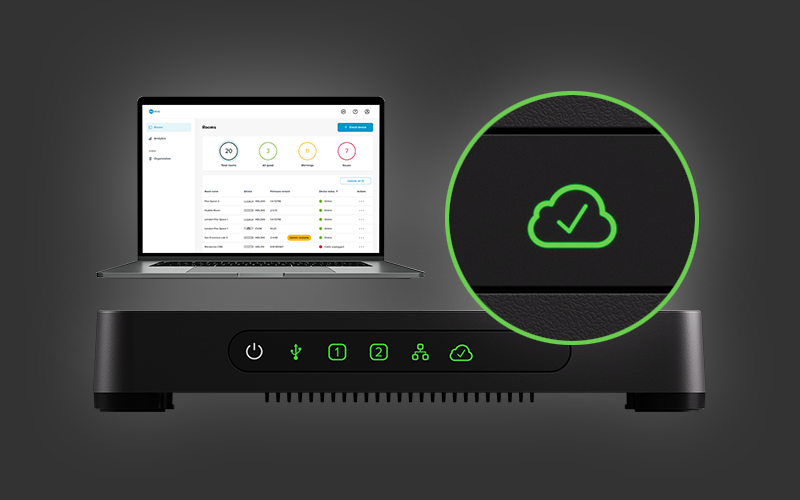

Console Direct
An Ethernet port on the connect module gives you a secure, 24/7 network connection to our cloud-based management tools.

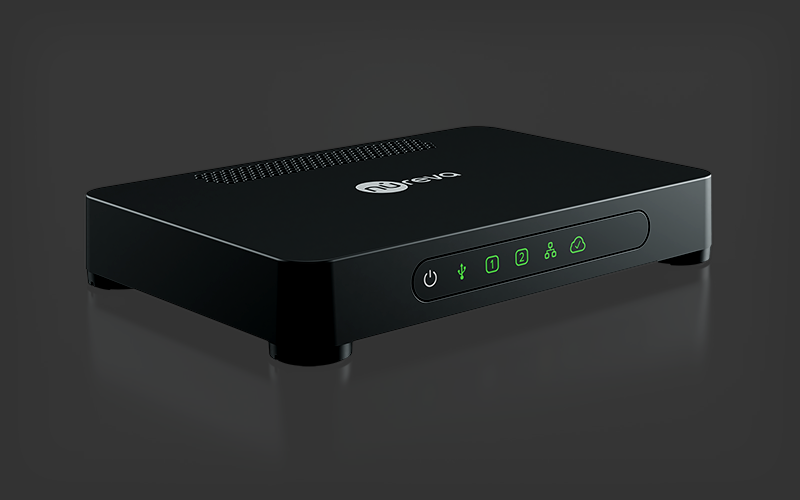

Processing power
Powerful processors and expanded memory in the connect module unlock advanced audio capabilities in our technology.
Certifications and integrations
The HDL410 is the only microphone and speaker bar solution certified for extra-large Teams Rooms and Zoom Rooms. It also integrates with many room peripherals, such as cameras, displays and controllers.

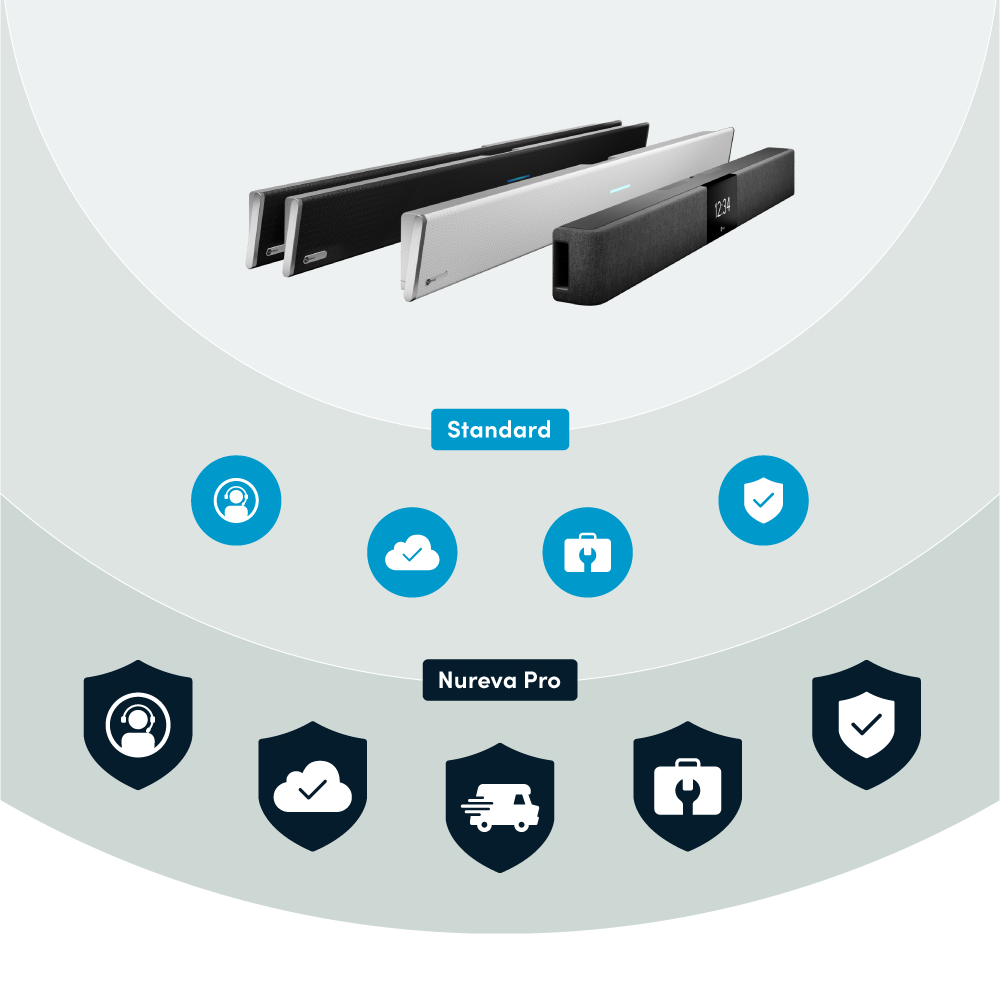

Software and services
Your HDL410 includes software and services designed to keep your rooms running smoothly. You get cloud-based management and monitoring, an intuitive setup app, developer APIs and a 2-year subscription to our services plan.

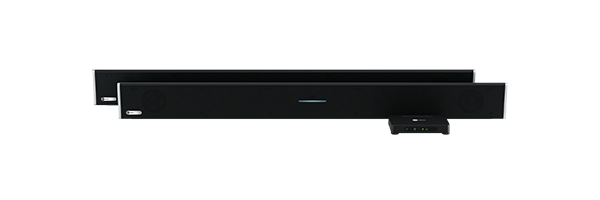

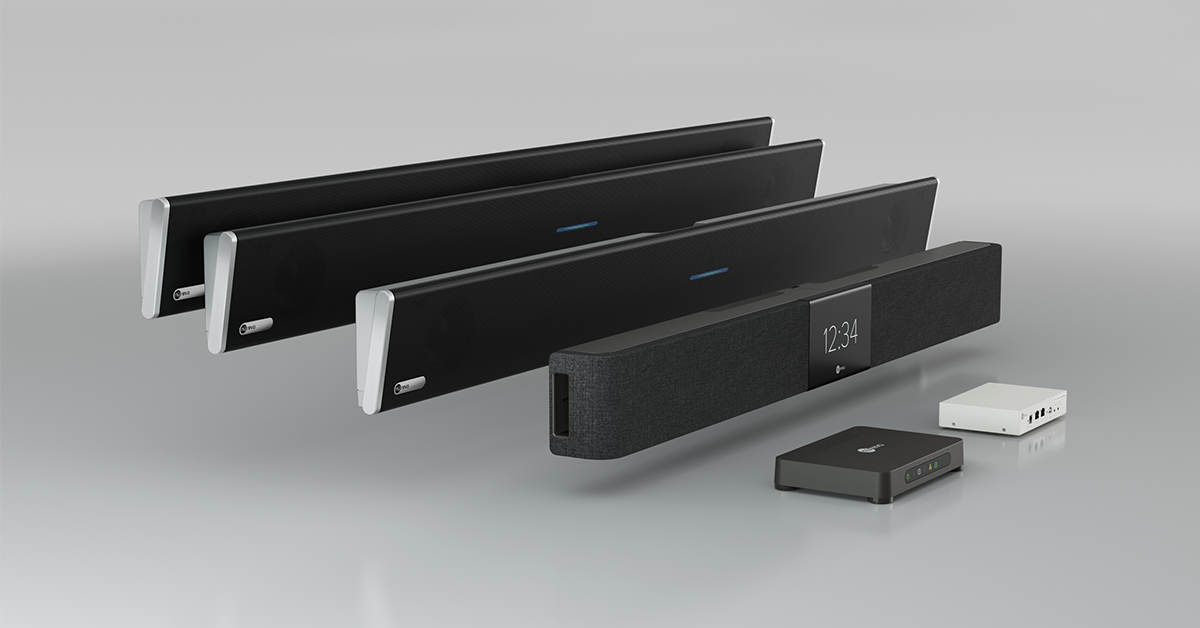

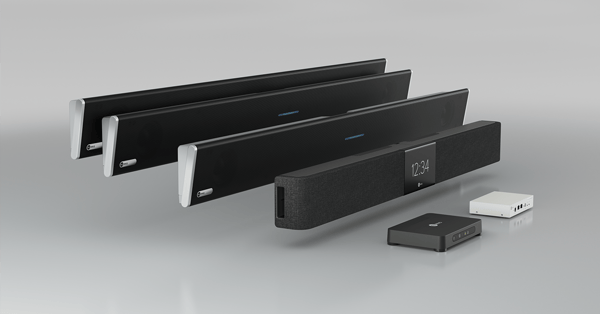

PRO SERIES
Equip your larger spaces with great audio for less. Explore our full HDL pro series lineup to see how easy it is to get incredible microphone pickup in the most challenging acoustic environments.
Resources
HDL410 system data sheet
Get features and specifications of our revolutionary audio system for extra-large rooms.
Meet the HDL410
Discover what makes the HDL410 audio system so different from traditional systems.
Demo on demand
Hear how the HDL410 handles scenarios such as soft talk, wall talk, blocked talk and cross talk.
Meet the pro series
Find out what makes the HDL pro series a radically simple audio alternative for larger spaces.
Microphone Mist technology
See how thousands of virtual mics ensure every voice is picked up, thanks to our patented tech.
Installation
Get simple instructions on how to install an HDL410 system on a wall in less than 60 minutes.
Unified coverage map
Discover how the HDL410 processes the physical mics from two bars together instead of separately.

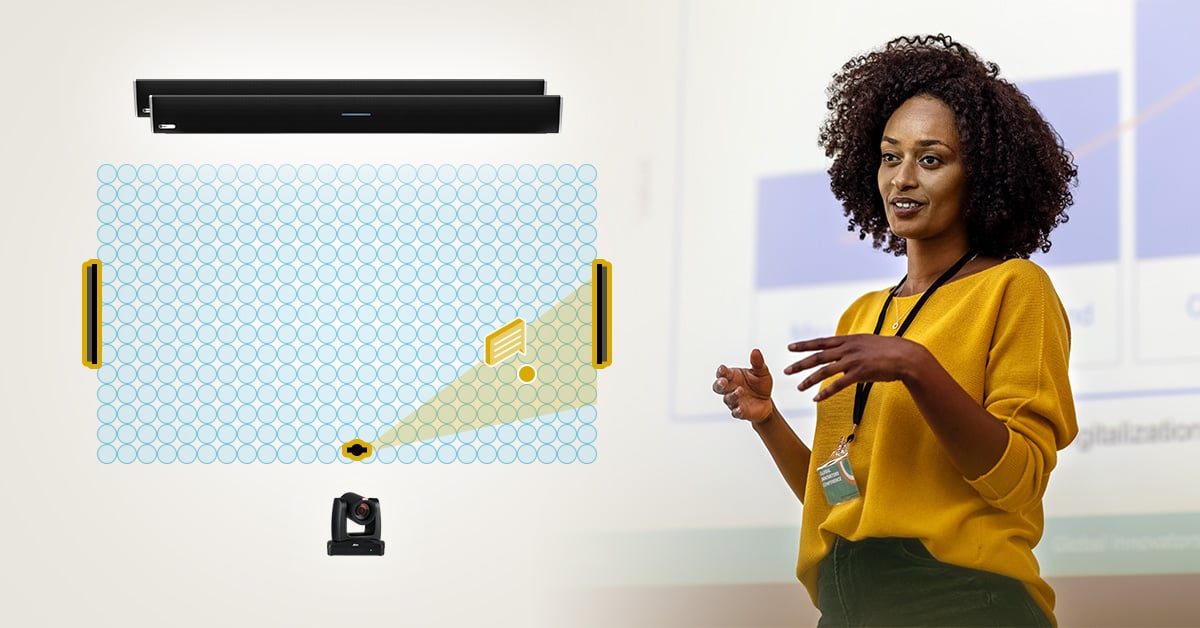

Camera zones
Find out how you can get easy automated camera switching with any brand of camera.
Connect module
See how our powerful processors and expanded memory deliver incredible mic pickup.
Voice Amplification Mode
Find out how to amplify a presenter’s voice in the room and mute the audience if needed.

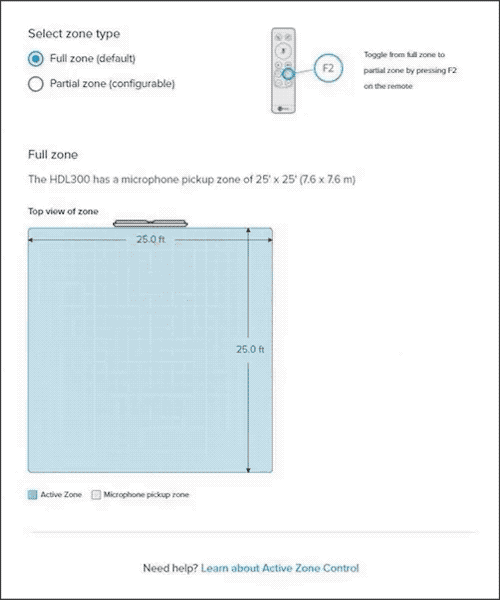

Device setup tool
Get a walk-through of this handy tool, available through Nureva Console and the Nureva App.
Don’t see a time that works? Find a different time
Specifications
HDL410
Technology features
Advanced Microphone Mist technology processing platform
Unified coverage map
Continuous autocalibration
Position-based gain control
Acoustic echo cancellation
Built-in sound masking
Plug and play, no software or drivers required
Ethernet cables to microphone and speaker bars
Primary audio source for video playback
Integrated, multicolor status LED
Microphones
24 low-noise omnidirectional MEMS (12 in each microphone and speaker bar)
Frequency response at 94 dB SPL 100 Hz to 7 kHz
Total harmonic distortion (THD) 0.25% (typical)
Speakers
4 x 20 W 4" aluminum cone (2 in each microphone and speaker bar)
Total harmonic distortion (THD) 0.25% (typical)

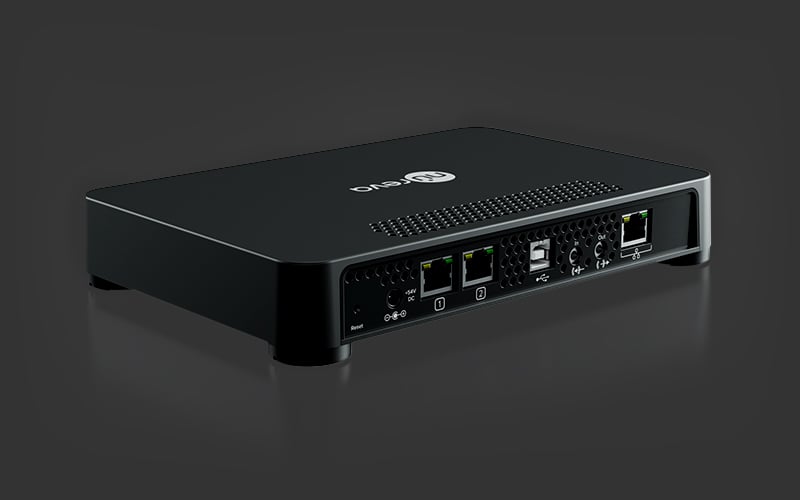

CONNECT MODULE
USB 2.0 interface to computer or collaboration hub, type B
Auxiliary out — 3.5 mm single-ended stereo jack
Auxiliary in — 3.5 mm single-ended stereo jack
2 connections to microphone and speaker bars RJ45
Console Direct RJ45 for connecting to network
Input jack for power supply
INTEROPERABILITY
Certified for Microsoft Teams and Zoom. Plug and play compatibility with other UC&C platforms including Google MeetTM, GoTo Meeting, Cisco Webex®, BlueJeans, Lifesize®, RingCentral MeetingsTM and more
Easy integration with third-party solutions such as cameras, displays, lecture capture systems, external speakers and headset microphones (for Voice Amplification Mode)
OPERATING
System requirements
Windows 10 and 11
macOS 10 and 11
(Big Sur and Catalina)
Power
Power rating: universal switching 100–240 V AC, 50–60 Hz
Power consumption: <30 W
Environmental
Operating temperature: 0° C to 40° C
(32° F to 104° F)
Storage temperature: -20° C to 70° C (-4° F to 158° F), humidity 5–90% (noncondensing)
MANAGEABILITY
Includes Console Direct, which provides a continuous and secure connection to Nureva Console, our cloud-based device management platform
Console Direct security features
Secure IoT OS and system software with device-specific X.509 certificates and external services encrypted using 256-bit Transport Layer Security (TLS)
Information security management system (ISMS) that is ISO/IEC 27001:2013 certified
Built with Microsoft Azure, all data at rest is encrypted using 256-bit AES encryption, and data in transit uses TLS 1.2
Auth0 by Okta for all identity and access management (IAM) services with OAuth 2.0 protocols to identify and authorize users
CERTIFICATIONS AND COMPATIBILITY
Electromagnetic
FCC Part 15, Class A; ICES-003, Class A; CISPR 32 (EN 55032), Class A; CISPR 35 (EN 55035); CISPR 24 (EN 55024)
Safety
UL 62368; CAN/CSA-C22.2 NO.62368; IEC/EN 62368; AS/NZS 62368; UL 60950; CAN/CSA-C22.2 NO.60950; IEC/EN 60950; AS/NZS 60950
Compliance
RoHS, REACH, POPs (Persistent Organic Pollutants), WEEE, California Proposition 65, EPA (TSCA — Toxic Substances Control Act) Restrictions
DIMENSIONS
Integrated microphone and speaker bar (each)
Width: 60.0" (152.4 cm)
Height: 5.91" (14.9 cm)
Depth: 3.5" (9.0 cm)
Weight: 18.0 lb. (8.2 kg)
Connect module
Width: 8.7" (22.2 cm)
Height: 1.46" (3.7 cm)
Depth: 5.91" (15.0 cm)
Weight: 0.97 lb. (0.44 kg)
Shipping (box one)
Width: 64.75" (164.4 cm)
Height: 10.63" (27.0 cm)
Depth: 9.5" (24.1 cm)
Weight: 28.0 lb. (12.7 kg)
Shipping (box two)
Width: 64.75" (164.4 cm)
Height: 10.63" (27.0 cm)
Depth: 9.5" (24.1 cm)
Weight: 22.0 lb. (10.0 kg)
INCLUDES
2 integrated microphone and speaker bars
Connect module, dark gray
Connect module mounting bracket, dark gray
Country-specific power cable, 6' (2.5 m), black
2 Ethernet cables, CAT6 SSTP, 50' (15 m), Class 3 rated, black
USB Type A-B cable, 10' (3 m), VW-1 rated, black
Infrared remote with 2 AAA batteries
Documentation
WARRANTY
Integrated microphone and speaker bars and connect module — standard 2-year limited hardware
Accessories and cables — 30 days
Extended warranties are available through Nureva Pro subscriptions
PART NUMBERS
Black: HDL410-B
White: HDL410-W
Nureva Pro extension (1 year): NP-1Y
Nureva Pro extension (2 years): NP-2Y
Nureva Pro extension (3 years): NP-3Y
Support
Find our resources, downloads and software, or connect with our support team for more assistance.

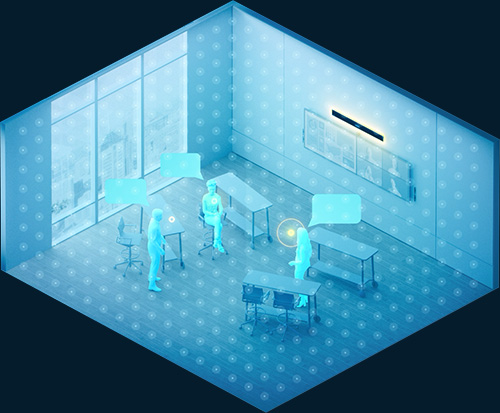

Full-room mic pickup
Our Microphone Mist™ technology fills extra-large spaces with 16,384 virtual microphones, so there’s always one nearby. People in the room can be confident they’ll always be heard by those who are remote.

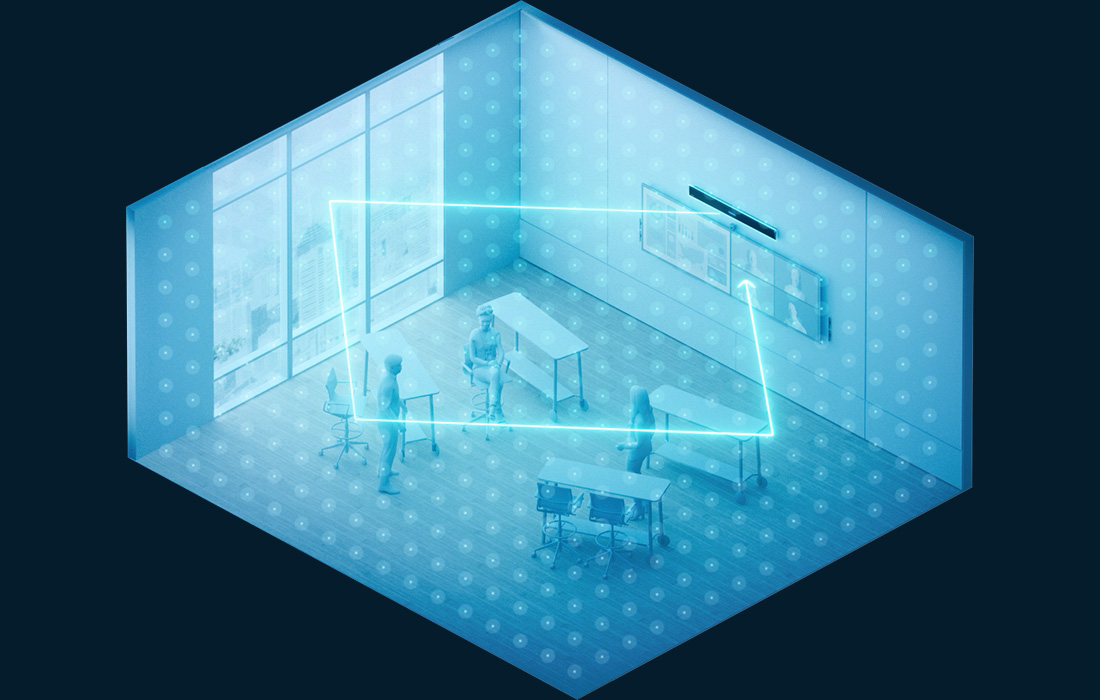

Continuous autocalibration
There’s no need to recalibrate your HDL410 manually. It’s always adapting to changes in your room’s acoustic profile, so even if you adjust the furniture or layout, the audio will still sound great.

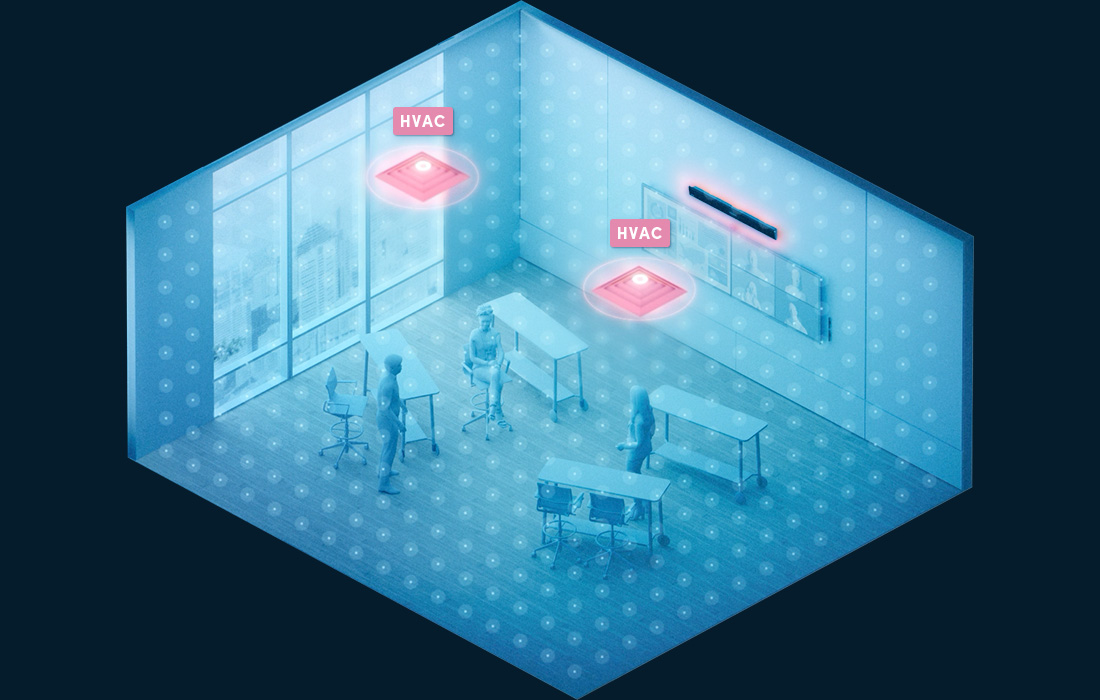

Intelligent Sound Targeting
HVAC and other unwanted sounds can seriously affect your audio. So, instead of trying to suppress these noises after the fact, we use adaptive learning algorithms to preemptively ignore them.
Simultaneous processing
Microphone Mist technology listens to and processes all virtual microphones simultaneously. Conversations sound natural, even when more than one person is speaking at the same time.

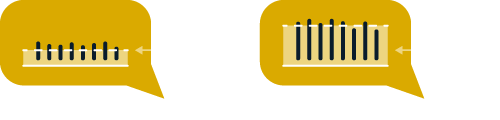

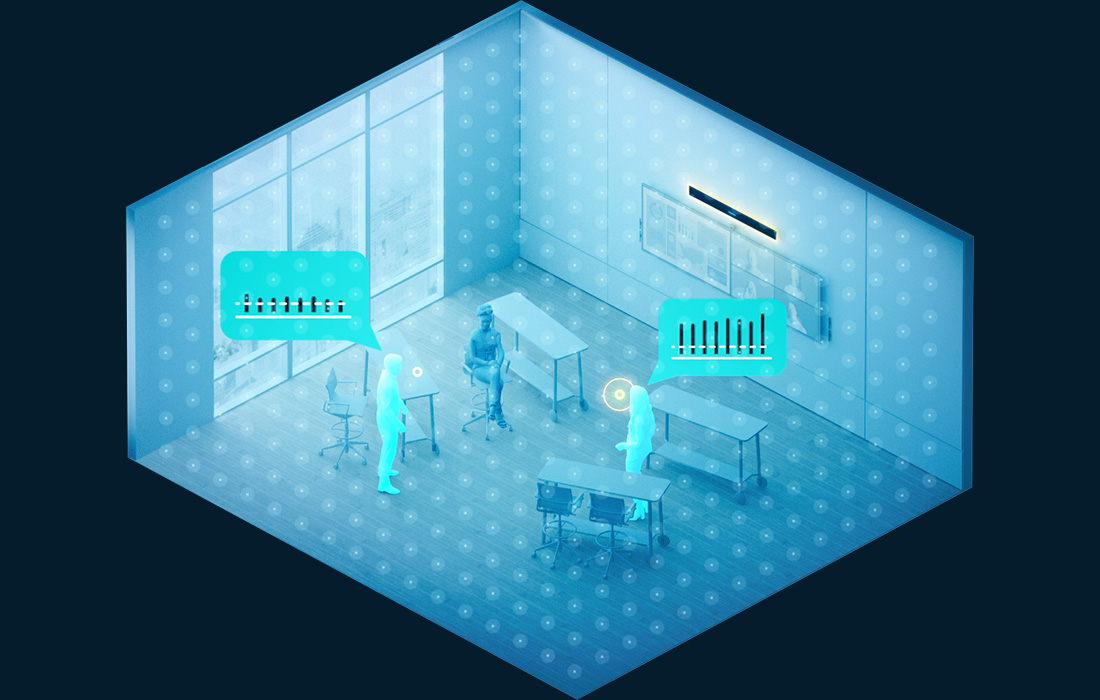

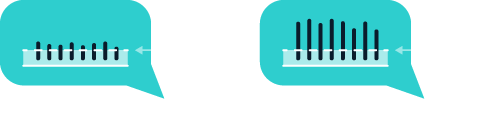

Position-based gain control
We apply gain separately to each sound in a space based on its position, creating a smooth and natural listening experience for remote participants.
